Empire Guitars Effects Voodoo Lab Dingbat Medium DBMPXS3P With Pedal Power 3 Plus And PX-8 Plus

This is a new Voodoo Lab Dingbat Medium with Pedal Power 3 Plus and the PX-8 Plus Switching system

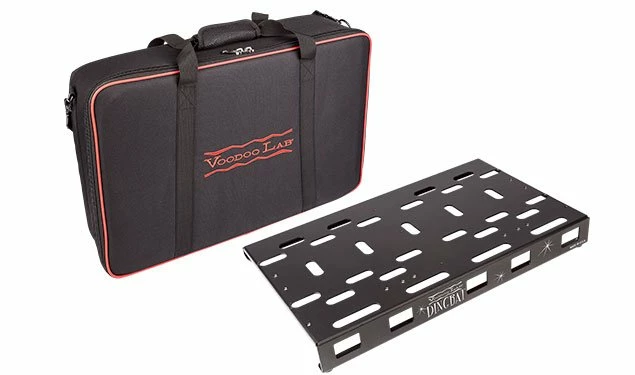

Medium Dingbat Pedal Board
Overview
The innovative patent pending design of a Voodoo Lab® Dingbat pedalboard delivers a rugged, lightweight platform for organizing your pedals and keeping cables neatly tucked away and out of view. Crafted from superior American 6061-T6 aircraft-grade aluminum, each pedalboard is made in Sonoma County, California and includes a tour ready gig bag.
At 22″ x 13 1/2″, the medium Dingbat is ideal for assembling a typical size board with room for 6 to 10 effects. Hook-and-loop tape is provided to attach pedals, also zip ties and 4-way tie mounts to secure cabling underneath.
Gig Bag
Each Dingbat pedalboard includes a heavy-duty tour grade padded gig bag that features premium YKK zipper hardware and stowable backpack straps for hands-free transportation.
Power Supply
Designed for seamless integration with industry-standard Voodoo Lab Pedal Power®, installing power supplies with included mounting hardware is quick and easy using only a screwdriver. If additional power is needed, Dingbat Medium features a dedicated position for a second Pedal Power that can be quickly installed with optional mounting brackets.

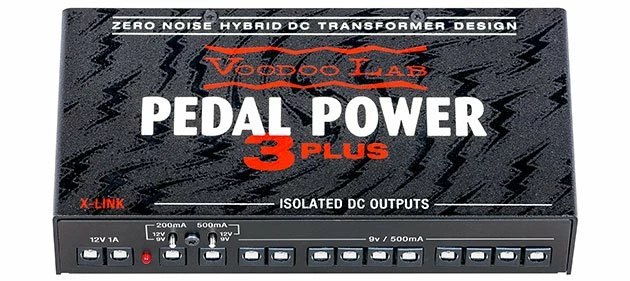

PEDAL POWER 3 PLUS
Overview
The Pedal Power 3 series is the first lightweight, high current, international voltage power supply to deliver zero-noise performance. Its innovative Hybrid DC transformer design integrates exotic components, linear regulation, and computer optimized filtering to establish industry-leading audiophile quality power that unveils the hidden sonic potential of any rig. From standard battery-operated pedals to modern high current DSP effects, Pedal Power 3 combines the best of time-tested analog engineering with cutting-edge technology to produce the cleanest, most reliable power in the business.
All Isolated Outputs
Equipped with eight galvanically isolated DC outputs, Pedal Power 3 eliminates ground hum and unwanted interaction between pedals. Each output supplies 9V DC with two featuring a voltage selector switch for 12V DC operation. 18V and 24V pedals can be powered by combining outputs with an optional voltage doubler cable.
Powerful
Each Pedal Power 3 output delivers up to 500mA of current to supply power-hungry modern DSP effects. Audiophile specifications also ensure the musical character of the most sensitive vintage stompboxes is preserved. This wide spectrum of flexibility with each output means less guesswork when connecting your pedals.
Expandable
Never run out of outputs. Pedal Power 3 features two X-LINK expansion ports for adding up to 16 isolated outs. Simply connect a Pedal Power X4 or X8 to X-LINK to expand the capacity of your power supply as your pedalboard grows.
Goes Anywhere
The low-profile, ultra-lightweight design of Pedal Power 3 easily mounts to any pedalboard, adding an almost undetectable amount of weight. Operating at any input voltage 100V-240VAC, Pedal Power 3 makes international touring convenient and hassle-free. No voltage converters needed. Just hit the road, plug in, and rock out.
Pedal Power® 3 features:
8 isolated 500mA DC outputs • 6 x 9V, 2 x Switchable 9V/12V
X-LINK expansion ports connect Pedal Power X4 and X8 units to add up to 16 isolated outputs
Powers standard battery operated and high current DSP effects
100V-240VAC operation for international touring
Audiophile-quality power ensures pedals sound and perform their best
Zero noise hybrid DC transformer design with linear regulation
Ultra-lightweight, low-profile aluminum construction
Includes DC power cable kit and detachable AC line cable
Dimensions: 6” x 3.4” x 1.5” (154 x 86 x 38 mm)
Weight: 0.9 lbs. (400g)
5 Year Warranty*
Made in the U.S.A.

PX-8
OVERVIEW
The Voodoo Lab PX-8 PLUS is a programmable 8-loop audio switcher that provides total control over guitar pedalboards. It’s basic function as an exceptional quality true-bypass loop strip removes all unused cabling and connections from the signal path for noticeably improved tone and dynamics. Offering single-button access to preset loop combinations, the PX-8 PLUS makes simultaneous switching of multiple effects quick and easy.
ORGANIZE AND CONTROL YOUR EFFECTS
Equipped with 8 true-bypass audio loops and 8 premium quality silent-operation footswitches, the PX-8 PLUS allows instant access to effects without touching your pedals. With simple and intuitive programming, instantly access 36 user-created preset loop combinations at the touch of a single button. PX-8 PLUS can also operate as a simple loop strip, with each button directly turning on and off each corresponding loop. PX-8 PLUS also includes an additional audio loop insert point between loops 6 and 7, which is ideal for placing a volume pedal or other audio device into the signal path.
PRESERVE YOUR TONE
Voodoo Lab Quiet Switching technology and nitrogen-sealed gold-contact relays provide the most silent operation possible while selecting individual effects or switching between presets. The audiophile-quality output buffer of the PX-8 PLUS ensures your tone will be preserved even with long cable runs to your amplifier.
DINGBAT PX PEDALBOARD
PX-8 PLUS is also available integrated with Voodoo Lab’s innovative and patented Dingbat PX Pedalboard. The unique mounting of Dingbat PX puts the PX-8 PLUS and all its cabling underneath the pedalboard, preserving valuable surface area for pedals. As with all Dingbat Pedalboards, Voodoo Lab Pedal Power can be easily installed using only a screwdriver. Dingbat PX can also be purchased with factory-installed. Pedal Power in one convenient package.
PERFORM WITH CONFIDENCE
Hand-built in the USA and housed in a rugged aluminum chassis using the highest quality components possible, the PX-8 PLUS pedal switcher is built to meet the demands of professional musicians who depend upon trouble-free operation night in and night out under the most rigorous touring conditions. This legendary reputation for quality and reliability is why countless world-class musicians around the globe trust Voodoo Lab to power their performance.
Features:

• Independent true bypass audio loops using the finest gold contact relay
• Access to 36 user-created preset effect combinations
• Stand Alone Instant Access Mode available for simple on/off pedal switching function
• Insert point between loops 6 & 7 for volume pedals and more
• Audiophile-quality output buffer preserves tone even with long cable run to amp
• Quiet Switching™ technology for lowest possible noise
• Conveniently power from any Pedal Power 9VDC output
• Instantly recall 128 preset combinations of effects via MIDI
• Compatible with Ground Control Pro or any MIDI controller
• Legendary Voodoo Lab quality and reliability
• Hand Made in the U.S.A.
• 5 Year Warranty
